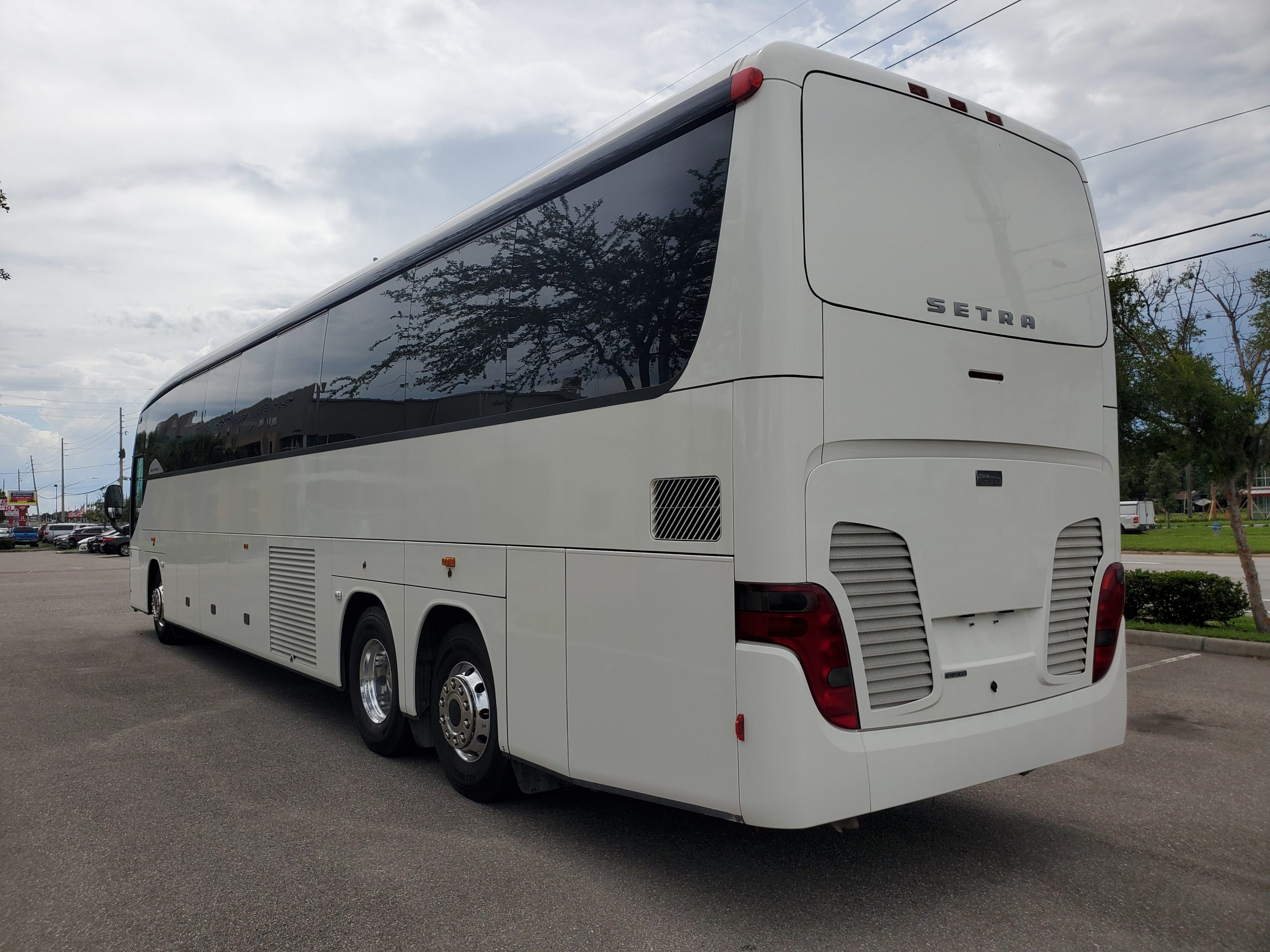

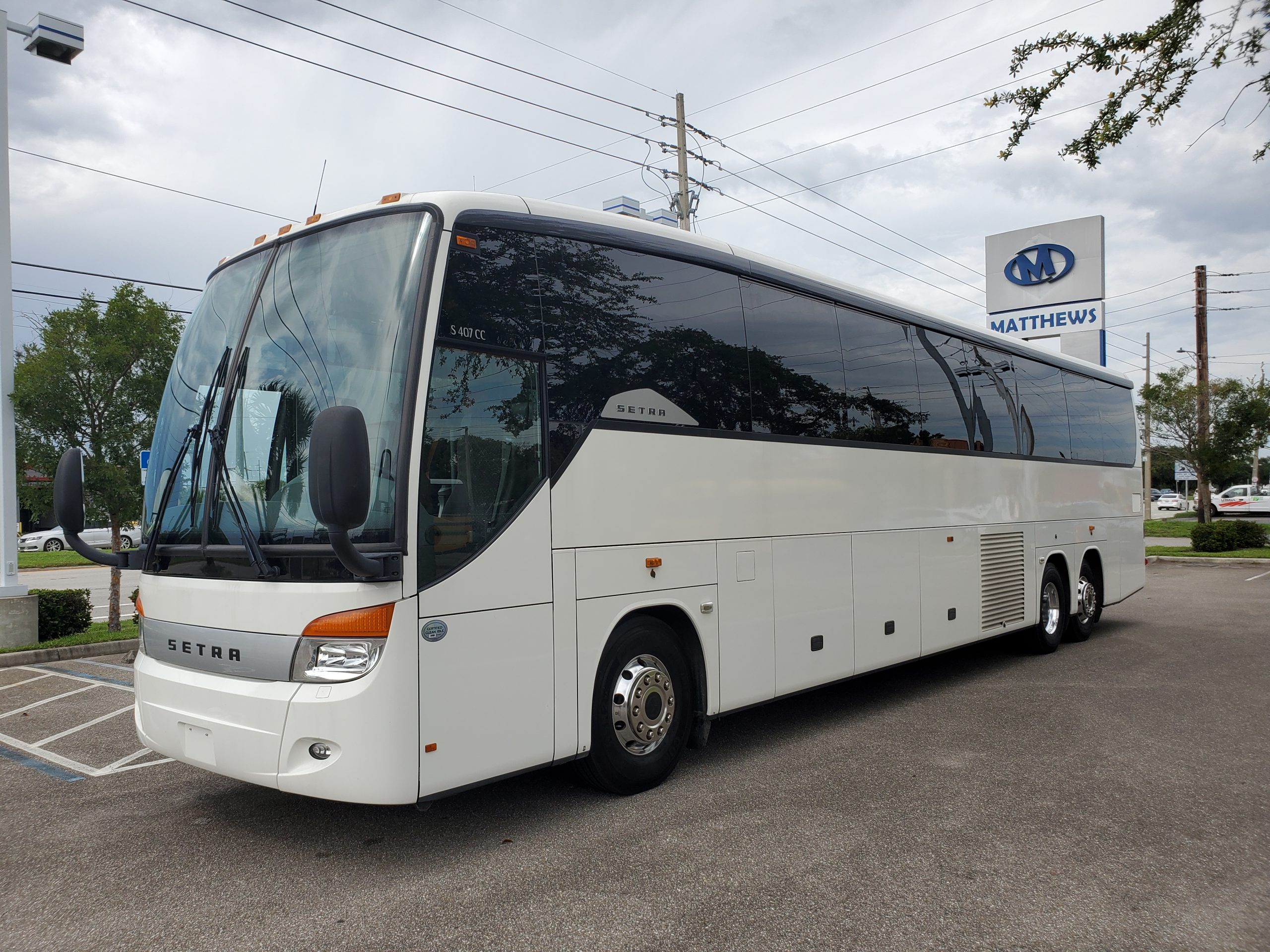

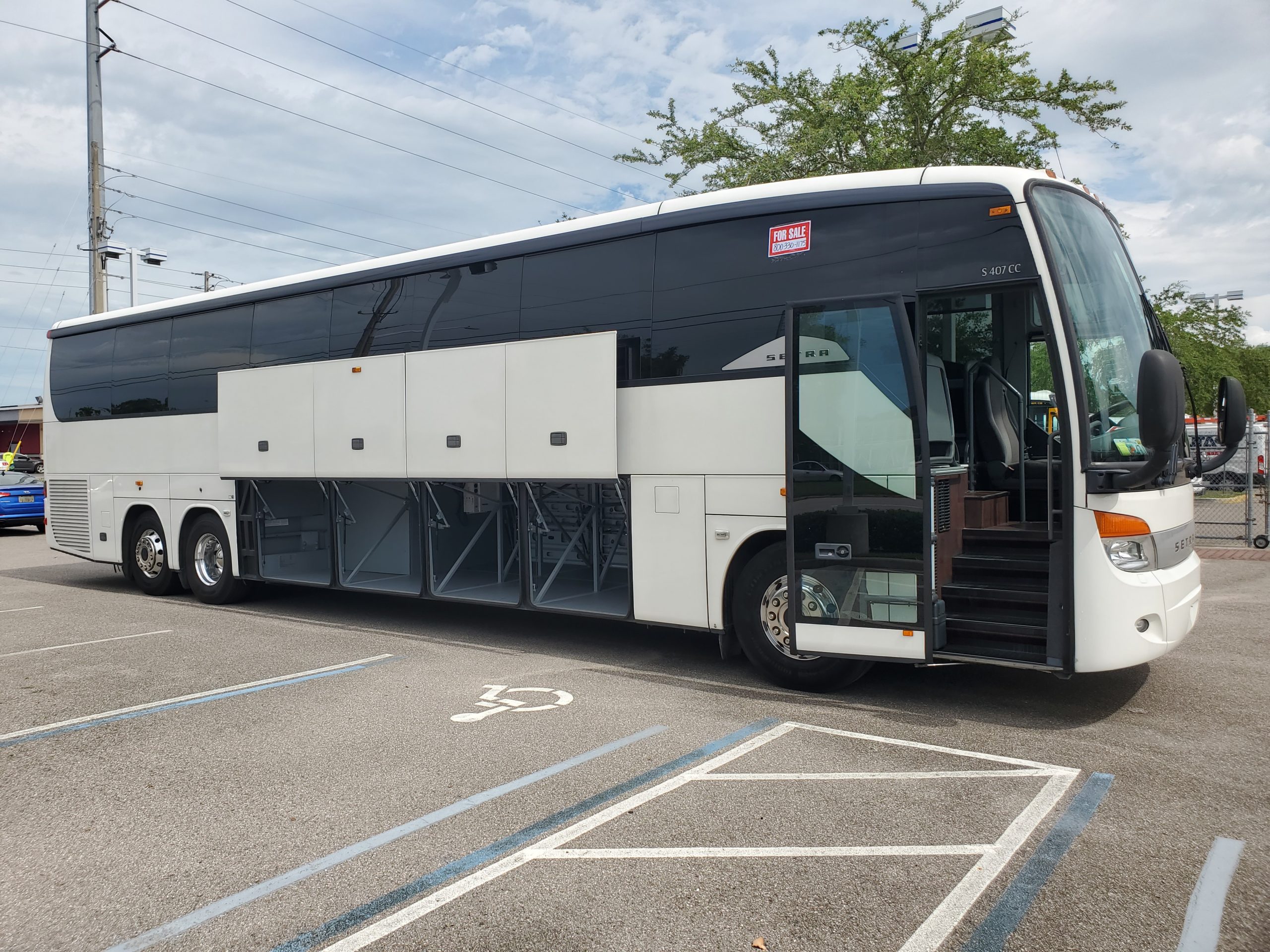

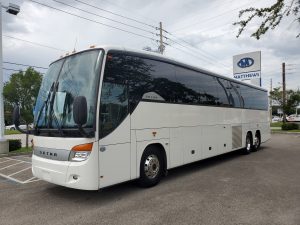

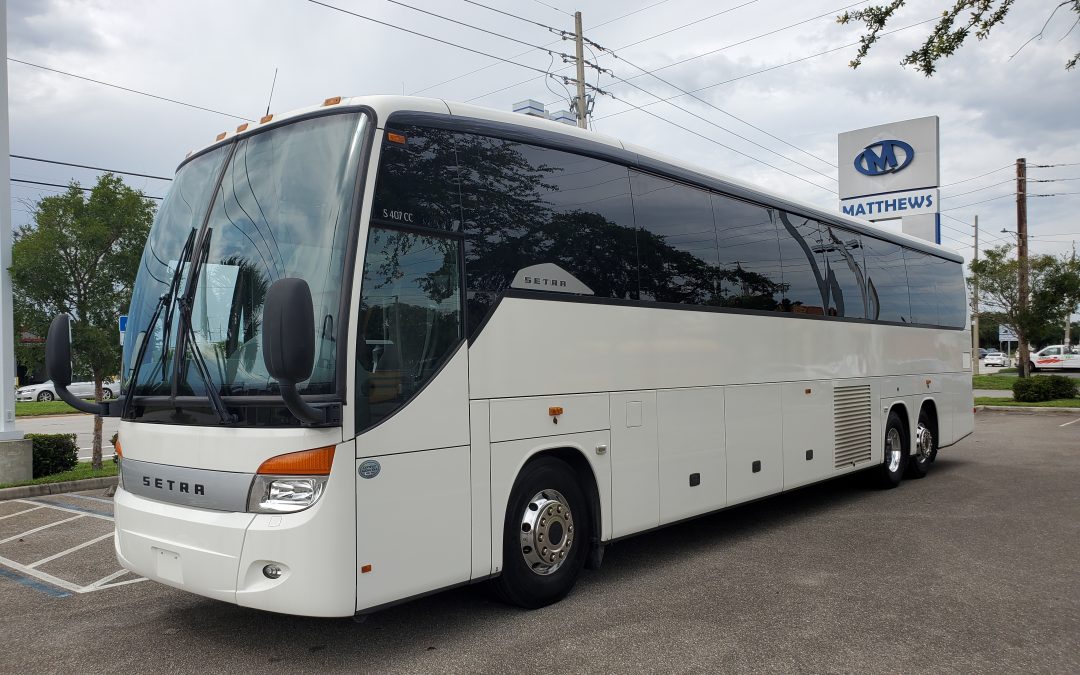

2017 SETRA MOTOR COACH- TYPE S 407 CC 56 PASSENGER COACH

SETRA MOTOR COACH- TYPE S 407 CC

56 PASSENGER COACH

 POWER TRAIN

• MERCEDES-BENZ ENGINE OM 471 LA, 336 KW,
• AUTOMATIC TRANSMISSION ALLISON WTB 500
• EMISSION STANDARD EPA 10 MY 2016

 SUSPENSION

• FINAL DRIVE RATIO I=3.909
• HILL-START ASSIST.
• RELIEF OF TRAILING AXLE VIA BUTTON ON INSTRUMENT PANEL
• DYNAMIC STABILITY CONTROL (ESP).
• KNEELING MANUAL AT FRONT AXLE, WITH DEAD MAN’S SWITCH, REGARDLESS OF DOOR STATUS
• TIRE BRAND – BRIDGESTONE 315/80 R 22.5 R 249 ECOPIA
• ALLOY RIMS WITH HUB CENTERING BRIGHT

BODY

• PANEL, FRONT RIGHT (FORWARD OF DOORWAY 1)
• DAYTIME LIGHTS FUNCTION

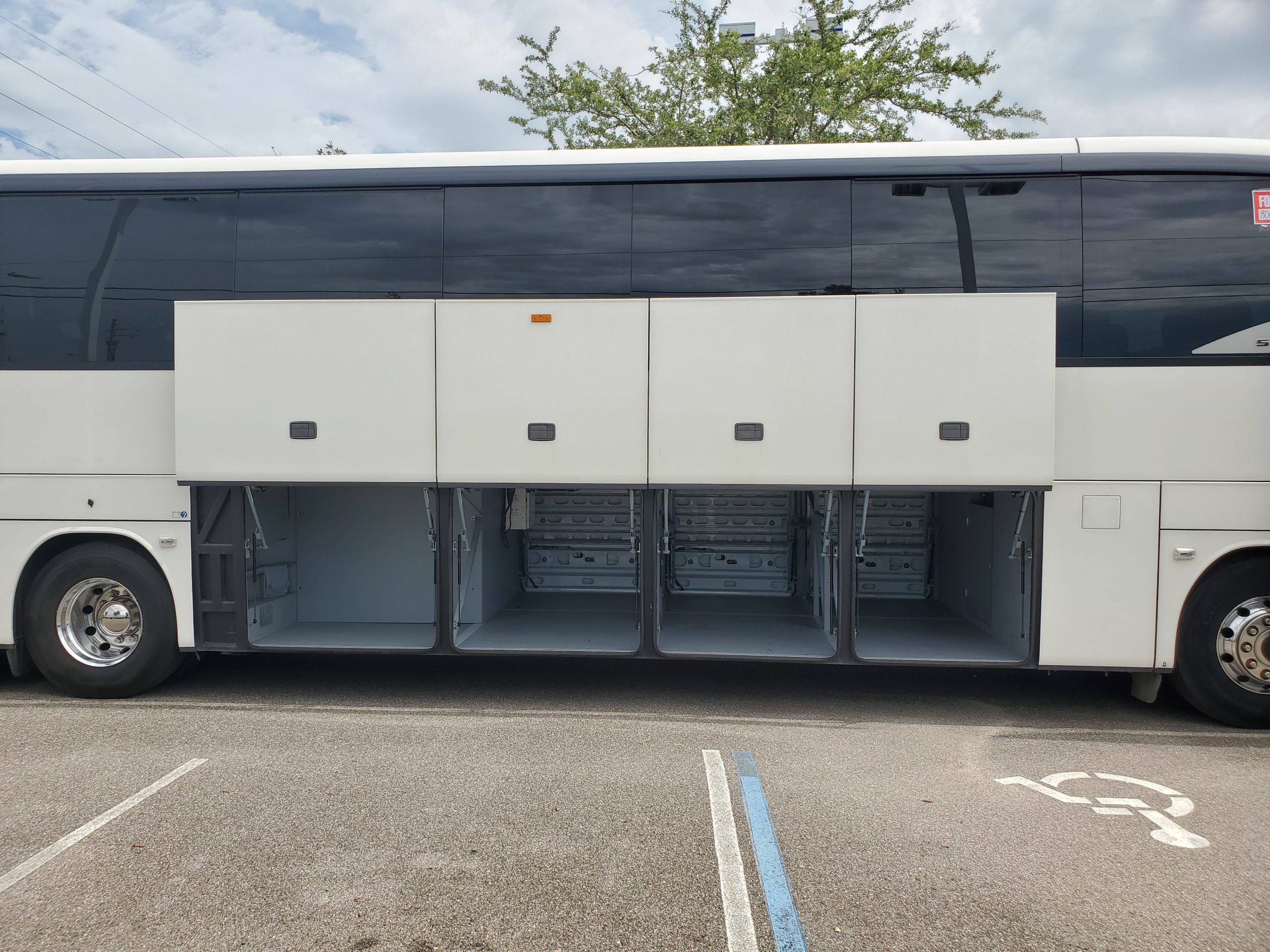

• PANTOGRAPH LOCKER DOORS (PARALLEL OPENING)
• END CROSS-MEMBER FUNCTIONLESS, (NOT SUITABLE FOR TRAILER OPERATION).

DOORS

• SUNBLIND ON DRIVER’S DOOR/SIDE WINDOW

SUPPLY SYSTEM

• ELECTRONIC FUEL PUMP.
• COMPRESSED AIR CONNECTION, FRONT

ELECTRICAL EQUIPMENT

• BATTERIES, 2X225 AH
• PROVISION FOR FLEET MANAGEMENT SAUCON
• ELIMINATE INCLUSION OF SAUCON MODULE
• DOCKING LIGHT

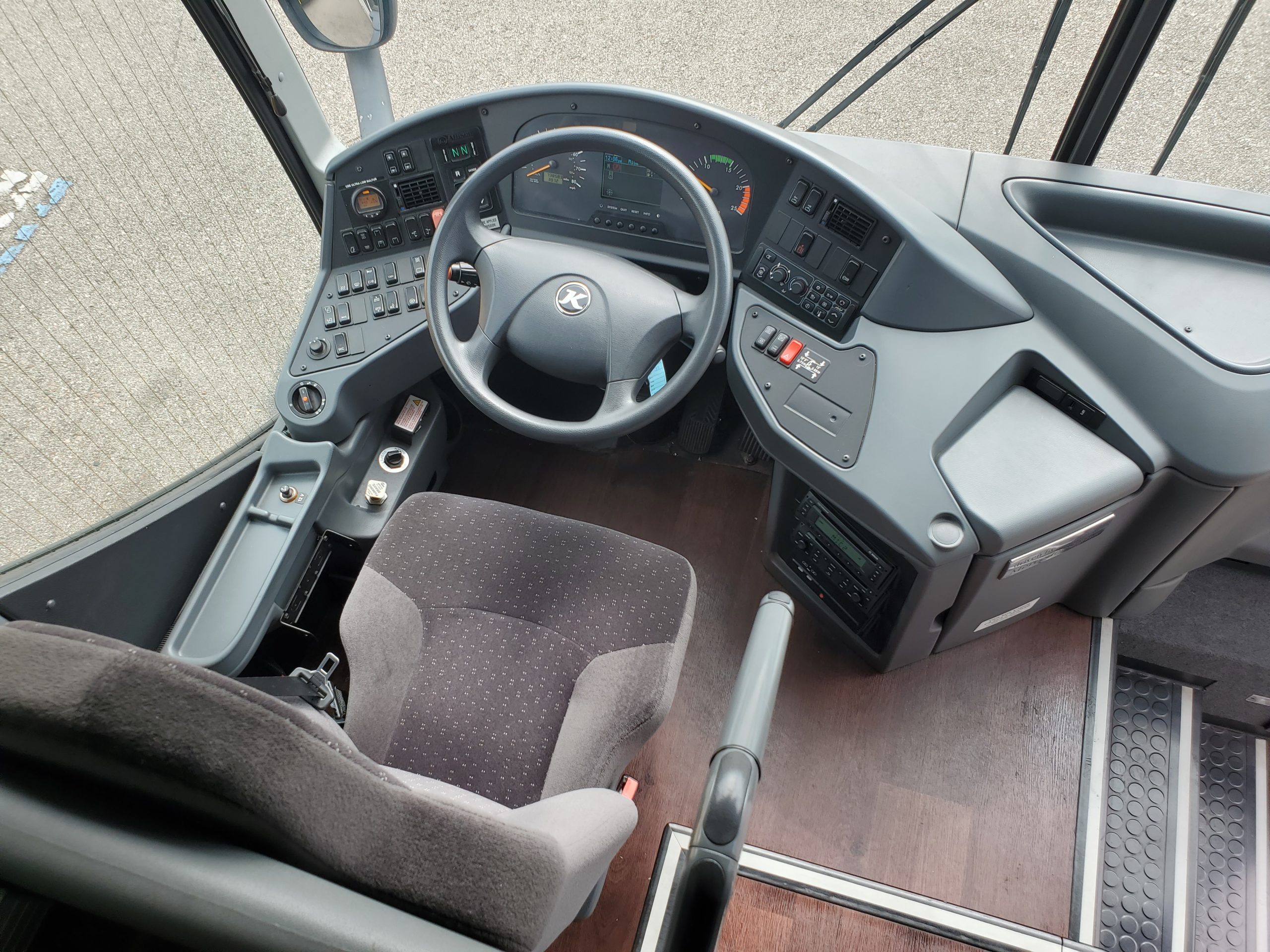

DRIVER’S WORKSTATION

• AIR HORN ACCORSI, ELECTRICALLY OPERATED
• HAND-HELD MICROPHONE, ALSO SUPPLY LOOSE MICROPHONE SOCKET ON B PILLAR AFTER ENTRY 1
• CENTRAL LOCKING SYSTEM FOR LUGGAGE COMP. DOORS (LEFT AND RIGHT SEPARATE), VIA ROCKER SWITCH IN INSTRUMENT PANEL.
• LUGGAGE COMPARTMENT LOCKING WHEN IGNITION “OFF” DELAYED BY 45 MINUTES.
• WARNING BUZZER FOR NON-ENGAGED SPRING BRAKES AND ENGINE ”OFF” IGNITION KEY AT: 0 OR 1)
• FIRE ALARM SYSTEM FOR ENGINE COMPARTMENT
• CIGARETTE LIGHTER ON INSTRUMENT PANEL ON LEFT-HAND SIDE, 12 VOLTS
• VISUAL WARNING IN THE EVENT OF UNLOCKED LUGGAGE COMPARTMENT DOORS
• HEATED WINDSCREEN
• DRIVER’S SEAT ISRI 6832/872 NTS FMVSS (3-POINT SEAT BELT).
• PNEUMATIC LUMBAR SUPPORT / LORDOSIS MOTOR FOR DRIVER’S SEAT.

AC-HEATING-COOLING

• SETRA TOPAIR AIR CONDITIONING SYSTEM, INTEGRATED A/C 45KW FOR 407 CONVECTOR HEATERS ALONGSIDE PANELS

INSTALLATION

• TOILET, CHEMICAL FLUSH (CC), AT VEHICLE REAR (NO WASHBASIN)
• KSW TO V09: CHEMICAL FLUSH.
• ANTIFREEZE VALVE FOR TOILET CLEAR WATER TANK

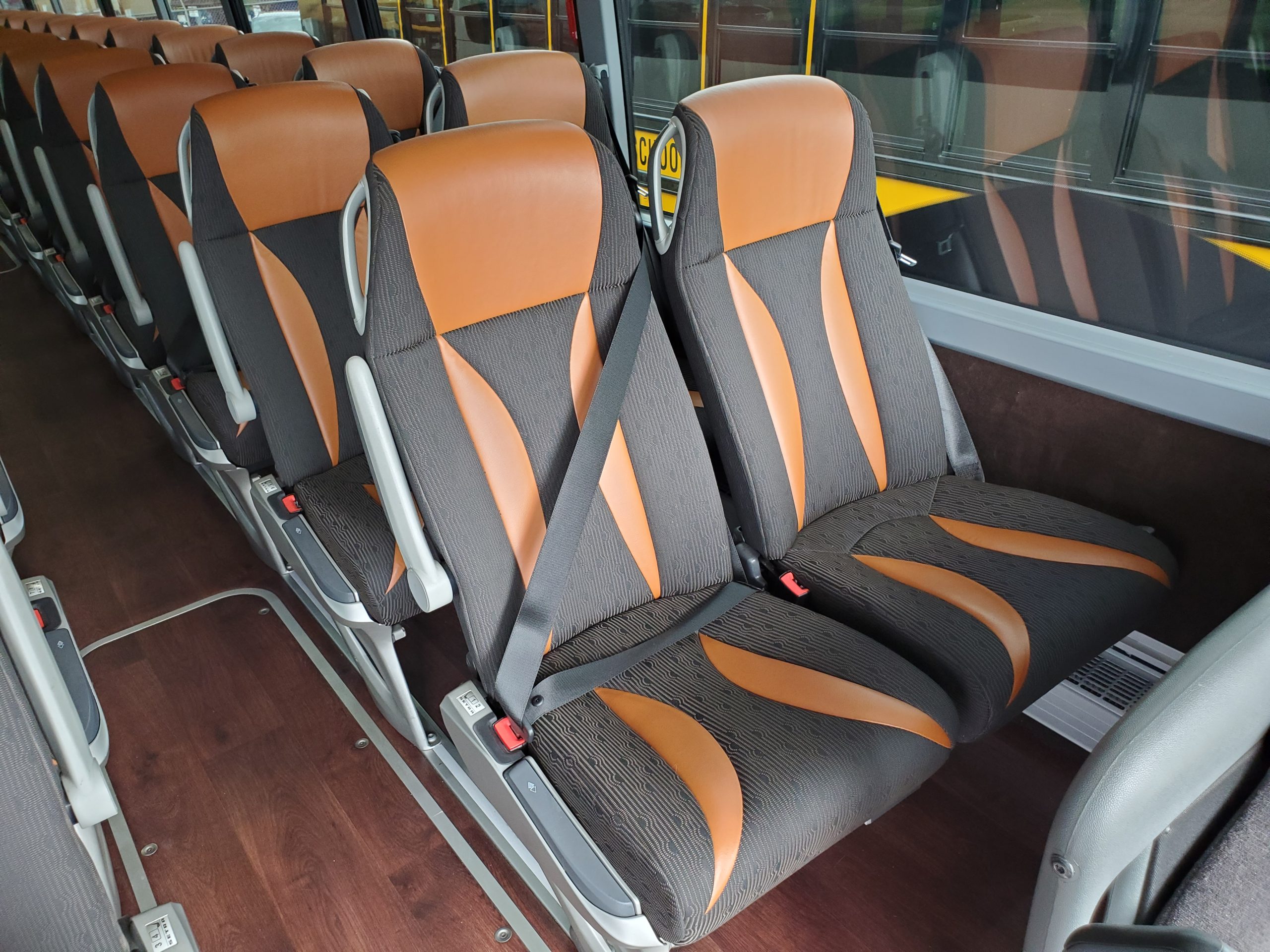

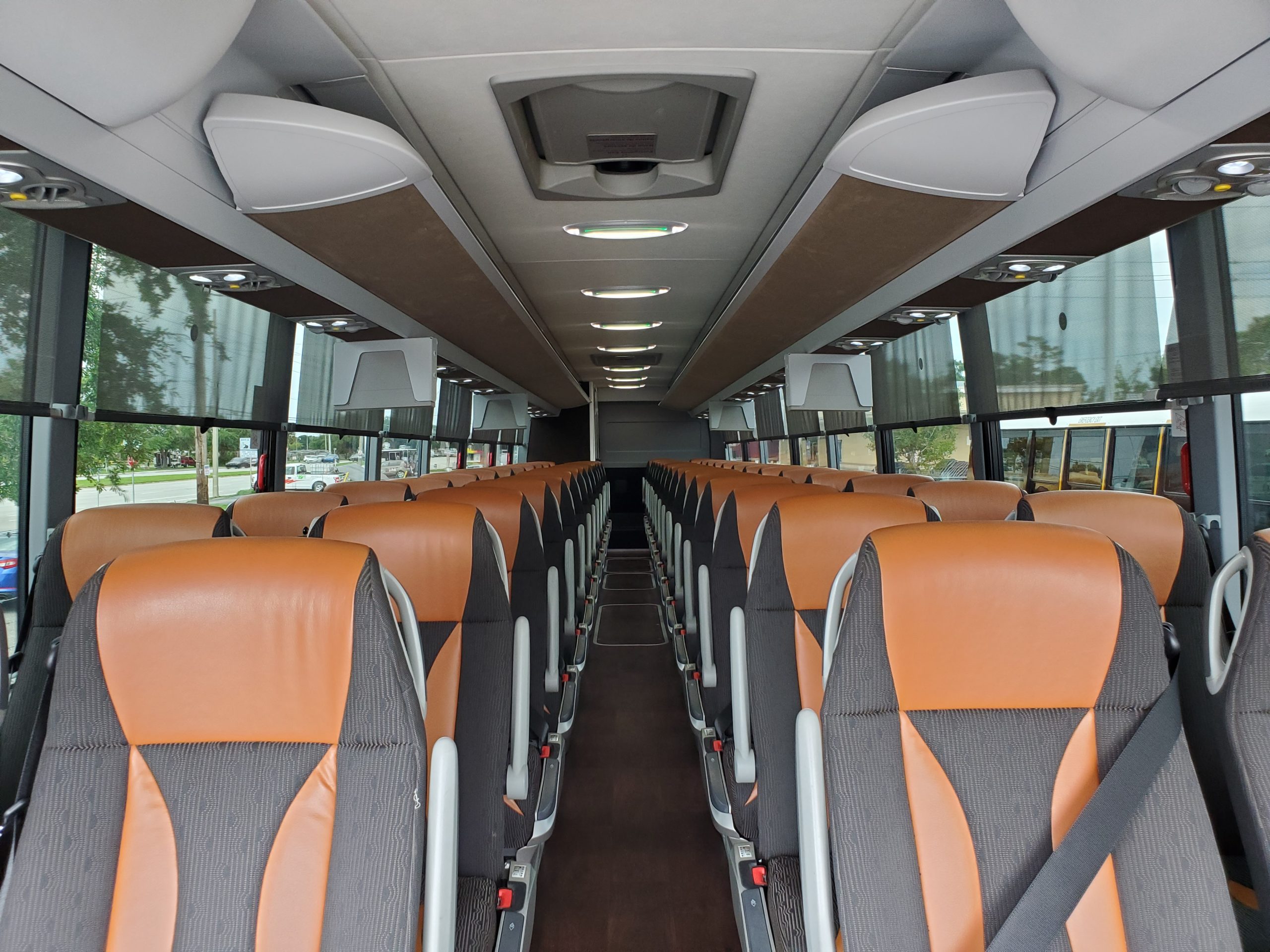

SEATS

• 56 SEAT CUSHIONS, BASIC VERSION.
• 56 UPHOLSTERY COVER WITH SEPARATE UPHOLSTERY FABRICS FOR BACK OF SEAT BACK AND SIDES.
• 56 SEAT SQUAB AND BACK IN FABRIC
• 56 BACK OF SEAT BACK IN FABRIC
• 56 ADJUSTABLE SEAT BACK.
• 28 ARMREST, ON AISLE SIDE, FOLDING 3-POINT SEAT BELTS ON ALL PASSENGER SEATS.
• 28 PASSENGER SEATS WITHOUT ADJUSTMENT.
• FOOT REST AT SEAT FRAMES
• 52 GRAB HANDLES INTEGRATED AISLE-SIDE IN SEAT BACKS.

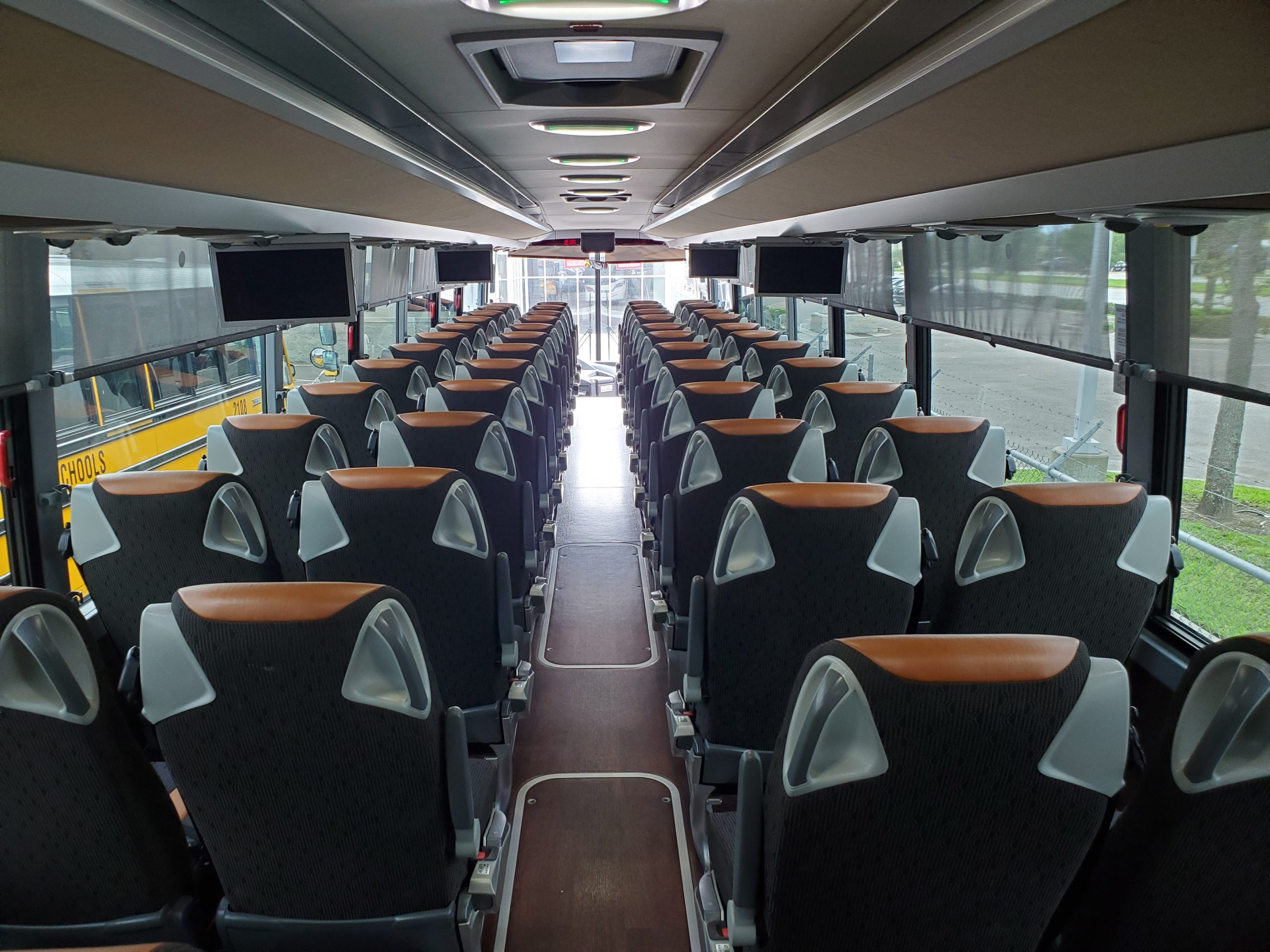

AUDIO/VISUAL

• AUDIO/VIDEO SYSTEM FROM BOSCH PROFESSIONAL LINE 3, WITH CD AND DVD PLAYER, PROGRAMME SEPARATION, REMOTE CONTROL, USB CONNECTION SOCKET (MP3/WMA).
• FLAT SCREEN SIZE 38.1 CM (15″) AT FRONT, FIXED INSTALLATION
• 15″ LCD MONITORS MOUNTED AT AIR DUCT (4 X)
• POSITION OF MONITORS IN DIRECTION OF TRA LEFT ABOVE SEAT ROW 5,10.
• POSITION OF MONITORS IN DIRECTION OF TRA RIGHT ABOVE SEAT ROW 4,8.
• PASSENGER SIGNAL SYSTEM WITH PUSH-BUTTON ABOVE EACH PAIR OF SEATS, STOP INDICATOR AND REPETITION LOCK

INTERIOR EQUIPMENT

• LED READING LAMPS

INTERIOR DESIGN

• FLOOR COVERING FOR LEVEL FLOOR PVC MATERIAL: HARMONIA. COLOR: ROSEWOOD
